MatchcodeFN050-ZIK.DC.V7P2Item number ZV-179667 |  |
|---|---|
| Product group | Axial fan |
| Model | Standard |
| Design | Refrigeration |
| Name | ECblue |
| Blade series | FN |
| Fan series match code | FN050-ZI_.DC.V7P2 |
| Blade diameter [cm] | 50 |
| Motor technology | EC |
| Rated voltage UN [V] UN [V] | 3~380-400 |
| Rated frequency fN [Hz] | 50/60 |
| Input power P1 [kW] | 1 |
| Rated current IN [A] | 1,7-1,35 |
| Rated speed nN [min-1] | 1550 |
| Current rating increase Δ I [%] | |
| Controlling starting current IA [A] | |
| Operating capacitor C400V [µF] | |
| Thermal class | THCL 155 |
| Minimum permissible flow medium temperature [°C] | -35 |
| Maximum permissible flow medium temperature [°C] | 60 |
| Electrical connection | Integrated controller |
| Sound pressure level LpA or LwA [dB(A)] | 57-83 |
| Number of wings | 7 |
| Rotor | High-performance composite material, non-lacquered |
| Wall ring plate | |
| Conformity | ErP 2015 |
| Weight [kg] | 13.9 |
| Airflow direction | V |
| Model | K (Basket grille) |

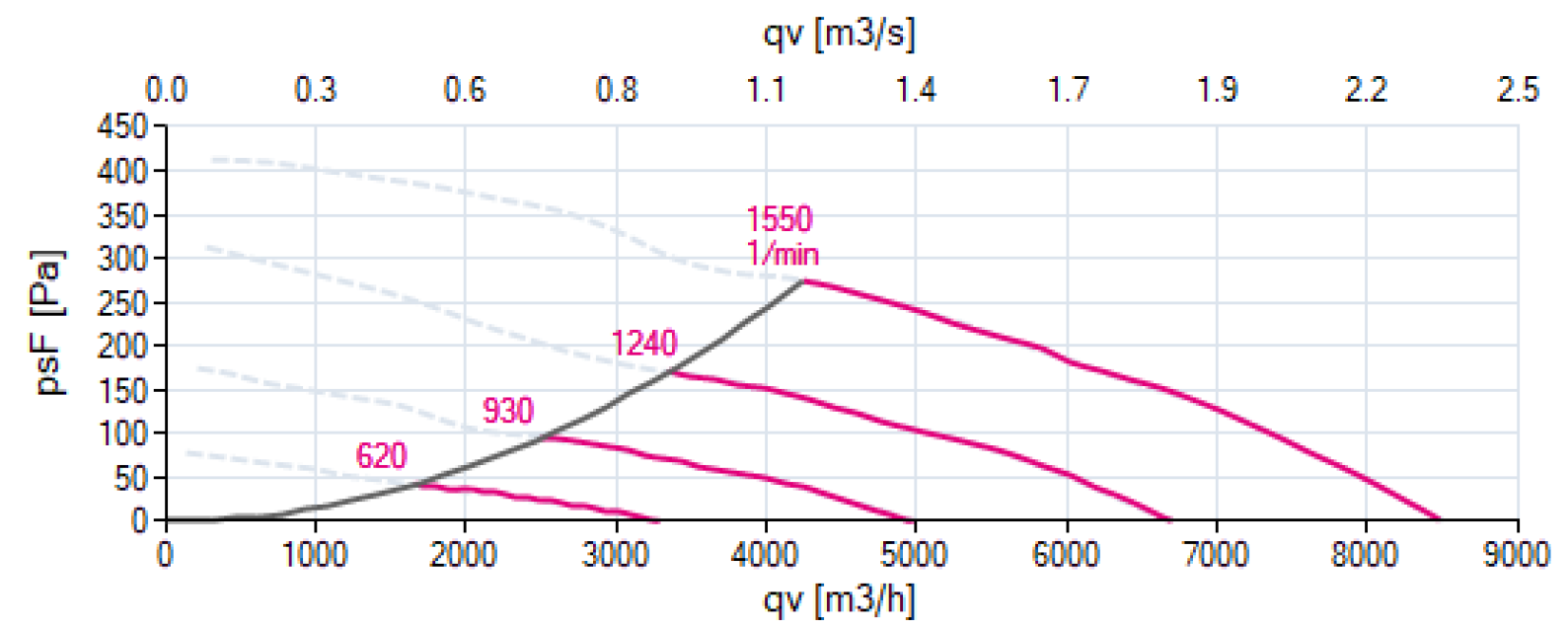

| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 8500 |
| Max. pressure psf [Pa] | 270 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 4250 |
 | |
