• Ferrari radial and process air fans

    Series FR

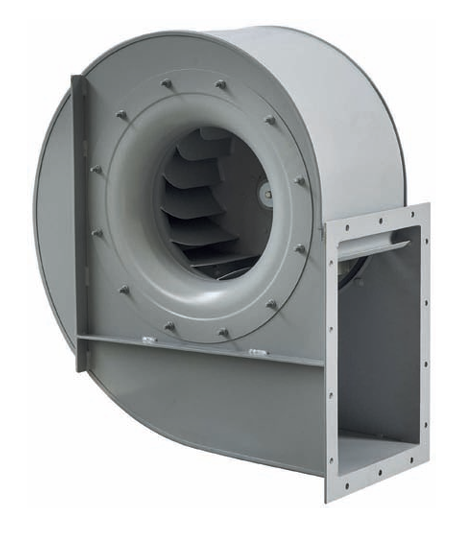

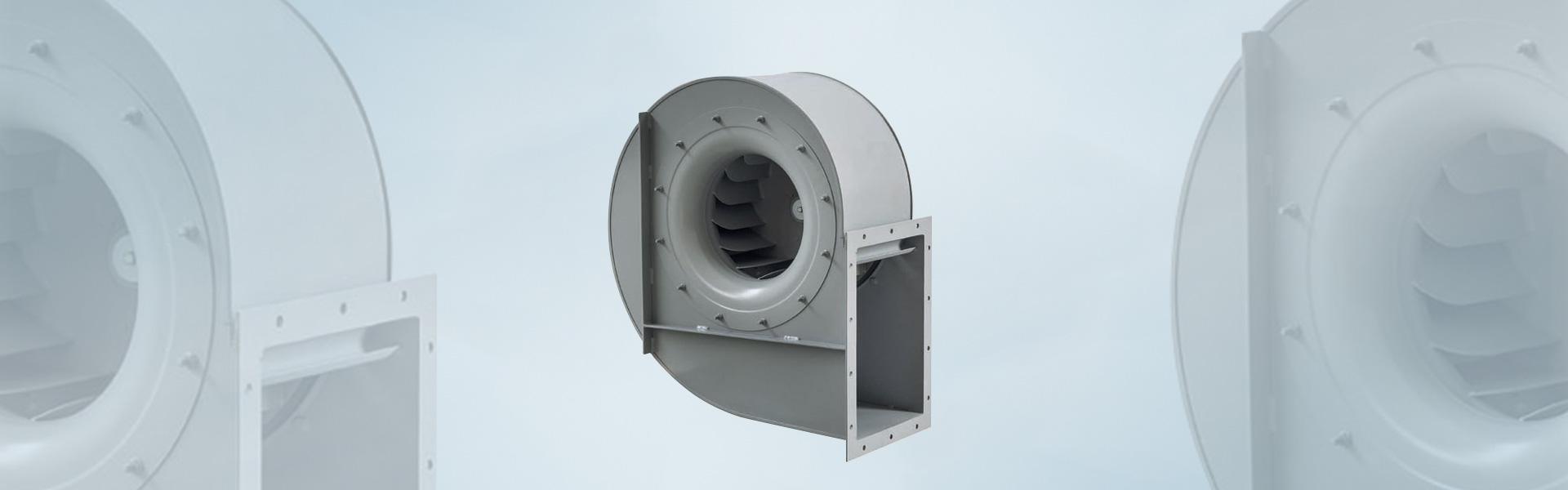

Radial and process air fans Series FR from Ferrari

Series with short delivery times


0 Results


Search
  • AC
  • AC/EC

Weight [kg]

Blade diameter [cm]
>= <=
>= <=
info >= <=
>= <=
clear Close

   Filter

Match code
FR 1002/4 N4A LG270 55KW-50HZItem number

Motor technology
AC
Rated voltage UN
3~400V V
Rated frequency fN
50 / on request Hz
Thermal class

Permissible flow medium temperature
-20 bis 100 °C
Number of wings

Protection class
IP55
Motor protection
with direct drive, single inlet (single flow)
Data sheet / request arrow_forward
Match code
FR 311/4 N4A LG270 0,18KW-50HZItem number

Motor technology
AC/EC
Rated voltage UN
3~230/400 V
Rated frequency fN
50 / on request Hz
Thermal class

Permissible flow medium temperature
-20 bis 100 °C
Number of wings

Protection class
IP55
Motor protection
with direct drive, single inlet (single flow)
Data sheet / request arrow_forward
Match code
FR 351/4 N4A LG270 0,37KW-50HZItem number

Motor technology
AC/EC
Rated voltage UN
3~230/400 V
Rated frequency fN
50 / on request Hz
Thermal class

Permissible flow medium temperature
-20 bis 100 °C
Number of wings

Protection class
IP55
Motor protection
with direct drive, single inlet (single flow)
Data sheet / request arrow_forward
Match code
FR 401/4 N4A LG270 0,55KW-50HZItem number

Motor technology
AC/EC
Rated voltage UN
3~230/400 V
Rated frequency fN
50 / on request Hz
Thermal class

Permissible flow medium temperature
-20 bis 100 °C
Number of wings

Protection class
IP55
Motor protection
with direct drive, single inlet (single flow)
Data sheet / request arrow_forward
Match code
FR 452/4 N4A LG270 0,75KW-50HZItem number

Motor technology
AC/EC
Rated voltage UN
3~230/400 V
Rated frequency fN
50 / on request Hz
Thermal class

Permissible flow medium temperature
-20 bis 100 °C
Number of wings

Protection class
IP55
Motor protection
with direct drive, single inlet (single flow)
Data sheet / request arrow_forward
Match code
FR 502/4 N4A LG270 1,5KW-50HZItem number

Motor technology
AC/EC
Rated voltage UN
3~230/400 V
Rated frequency fN
50 / on request Hz
Thermal class

Permissible flow medium temperature
-20 bis 100 °C
Number of wings

Protection class
IP55
Motor protection
with direct drive, single inlet (single flow)
Data sheet / request arrow_forward
Match code
FR 561/4 N4A LG270 4KW-50HZItem number

Motor technology
AC/EC
Rated voltage UN
3~230/400 V
Rated frequency fN
50 / on request Hz
Thermal class

Permissible flow medium temperature
-20 bis 100 °C
Number of wings

Protection class
IP55
Motor protection
with direct drive, single inlet (single flow)
Data sheet / request arrow_forward
Match code
FR 632/4 N4A LG270 5,5KW-50HZItem number

Motor technology
AC/EC
Rated voltage UN
3~230/400 V
Rated frequency fN
50 / on request Hz
Thermal class

Permissible flow medium temperature
-20 bis 100 °C
Number of wings

Protection class
IP55
Motor protection
with direct drive, single inlet (single flow)
Data sheet / request arrow_forward
Match code
FR 711/4 N4A LG270 15KW-50HZItem number

Motor technology
AC/EC
Rated voltage UN
3~230/400 V
Rated frequency fN
50 / on request Hz
Thermal class

Permissible flow medium temperature
-20 bis 100 °C
Number of wings

Protection class
IP55
Motor protection
with direct drive, single inlet (single flow)
Data sheet / request arrow_forward
Match code
FR 802/4 N4A LG270 18,5KW-50HZItem number

Motor technology
AC
Rated voltage UN
3~230/400 V
Rated frequency fN
50 / on request Hz
Thermal class

Permissible flow medium temperature
-20 bis 100 °C
Number of wings

Protection class
IP55
Motor protection
with direct drive, single inlet (single flow)
Data sheet / request arrow_forward
Match code
FR 902/4 N4A LG270 37KW-50HZItem number

Motor technology
AC
Rated voltage UN
3~230/400 V
Rated frequency fN
50 / on request Hz
Thermal class

Permissible flow medium temperature
-20 bis 100 °C
Number of wings

Protection class
IP55
Motor protection
with direct drive, single inlet (single flow)
Data sheet / request arrow_forward
