MatchcodeFN031-4DK.0F.V7P2Item number ZV-159471 |  |
|---|---|
| Product group | Axial fan |
| Model | Standard |
| Design | Refrigeration technology |
| Name | |
| Blade series | FN |
| Fan series match code | FN031-4D_.0F.V7P2 |
| Blade diameter [cm] | 31 |
| Motor technology | AC |
| Rated voltage UN [V] UN [V] | 3~230/400, 265/460 |
| Rated frequency fN [Hz] | 50/60 |
| Input power P1 [kW] | 0,18 |
| Rated current IN [A] | 0,12/0,17/0,18 |
| Rated speed nN [min-1] | 0,68/0,39 / 0,61/0,35 / 0,68/0,39 |
| Current rating increase Δ I [%] | 1450 / 1700 / 1720 |
| Controlling starting current IA [A] | |
| Operating capacitor C400V [µF] | |
| Thermal class | THCL 155 |
| Minimum permissible flow medium temperature [°C] | -40 |
| Maximum permissible flow medium temperature [°C] | 70 |
| Electrical connection | Junction box |
| Sound pressure level LpA or LwA [dB(A)] | 63-66 |
| Number of wings | 7 |
| Rotor | Aluminium, 1-coat lacquer |
| Wall ring plate | |
| Conformity | fällt nicht unter die ErP-Richtlinien |
| Weight [kg] | 4.9 |
| Airflow direction | V |
| Model | K (short nozzle wire mesh) |

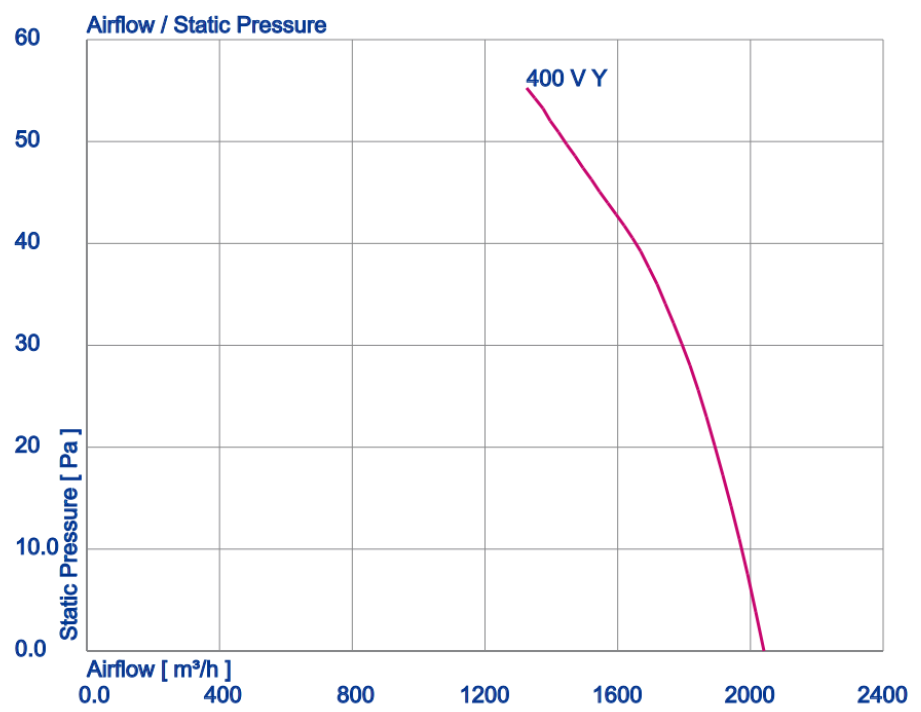

| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 2050 |
| Max. pressure psf [Pa] | 56 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 1300 |
 | |
