ZIEHL ABEGG - DN35A-2DK.A7.14.G7 / ZV-198814

Matchcode DN35A-2DK.A7.14.G7 Item number ZV-198814
Product group	Axial fan
Model	Standard
Design
Name	MAXvent owlet
Blade series	DN
Fan series match code	DN35A-2DK.A7.14.G7
Blade diameter [cm]	35
Motor technology	AC
Rated voltage U_N [V] UN [V]	3~230/400
Rated frequency fN [Hz]	50
Input power P1 [kW]	0,55
Rated current IN [A]	0,55
Rated speed nN [min-1]	2,31/1,33
Current rating increase Δ I [%]	2740
Controlling starting current IA [A]
Operating capacitor C400V [µF]
Thermal class	THCL 155
Minimum permissible flow medium temperature [°C]	-25
Maximum permissible flow medium temperature [°C]	50
Electrical connection	External junction box
Sound pressure level LpA or LwA [dB(A)]	77-90
Number of wings	7
Rotor
Wall ring plate
Conformity	ErP 2015
Weight [kg]	16
Airflow direction	A

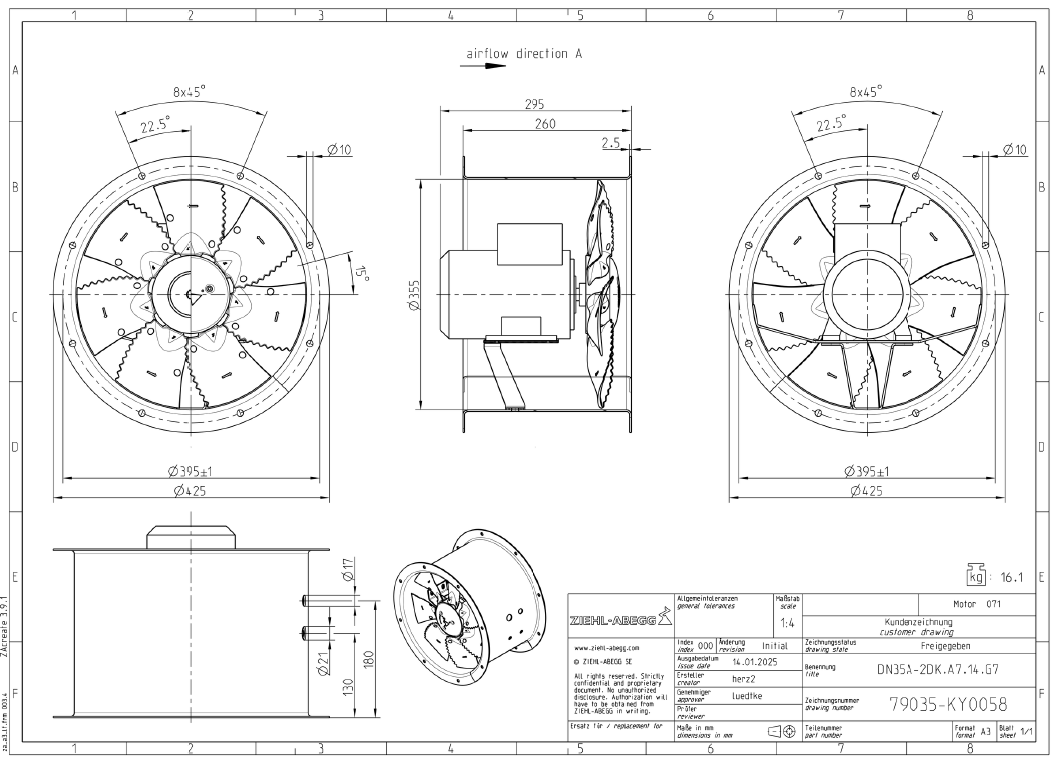

Model	Short housing: Design K
Max. volume flow qv, (where psf = 0 Pa) [m³/h]	3750
Max. pressure psf [Pa]	370
Max. volume flow qv [m³/h] (at max. psf [Pa])	1900

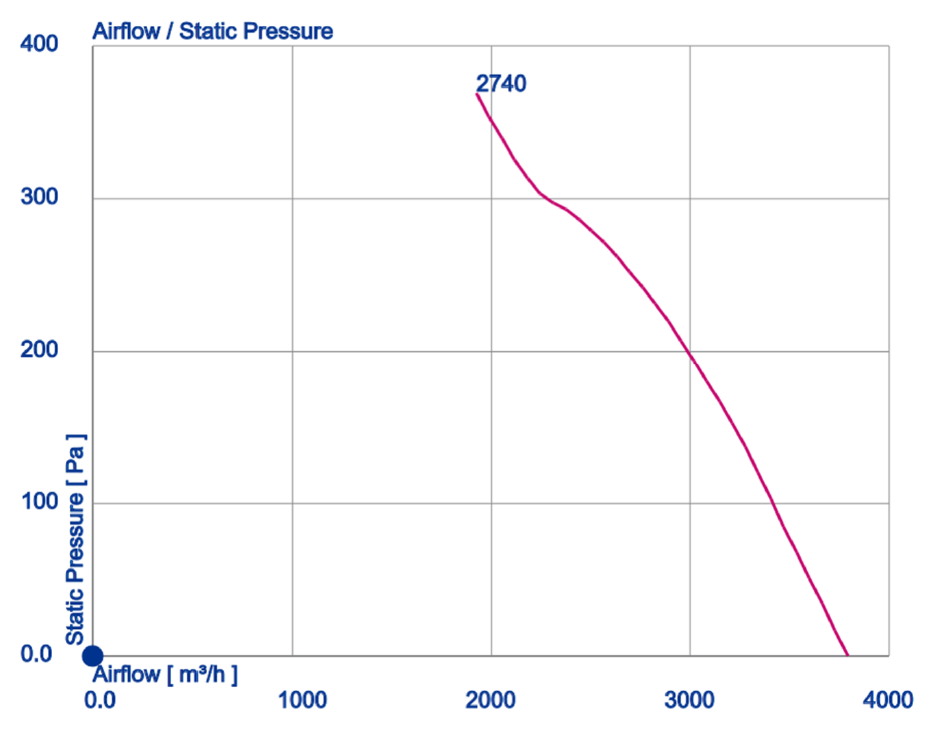

Performance data

Effizienzgrad: Nist = 49,3
