MatchcodeFC063-4DQ.6N.V7Item number ZV-167623 |  |
|---|---|
| Product group | Axial fan |
| Model | |
| Design | Refrigeration technology, UL |
| Name | |
| Blade series | FC |
| Fan series match code | FC063-__Q.6_.V7 |
| Blade diameter [cm] | 63 |
| Motor technology | AC |
| Rated voltage UN [V] UN [V] | 3~230/400, 265/460 |
| Rated frequency fN [Hz] | 50/60 |
| Input power P1 [kW] | 3,2 |
| Rated current IN [A] | 2 / 2,9 / 3,2 |
| Rated speed nN [min-1] | 6.1/3.5 / 8.3/4.8 / 8.0/4.6 |
| Current rating increase Δ I [%] | 1310/1390/1490 |
| Controlling starting current IA [A] | |
| Operating capacitor C400V [µF] | |
| Thermal class | THCL 155 |
| Minimum permissible flow medium temperature [°C] | -40 |
| Maximum permissible flow medium temperature [°C] | 70 |
| Electrical connection | Junction box |
| Sound pressure level LpA or LwA [dB(A)] | 84-87 |
| Number of wings | 7 |
| Rotor | Aluminium, 1-coat lacquer, black |
| Wall ring plate | Wall ring, steel, powder-coated, deep black |
| Conformity | ErP 2015 |
| Weight [kg] | 39.6 |
| Airflow direction | V |
| Model | Q |

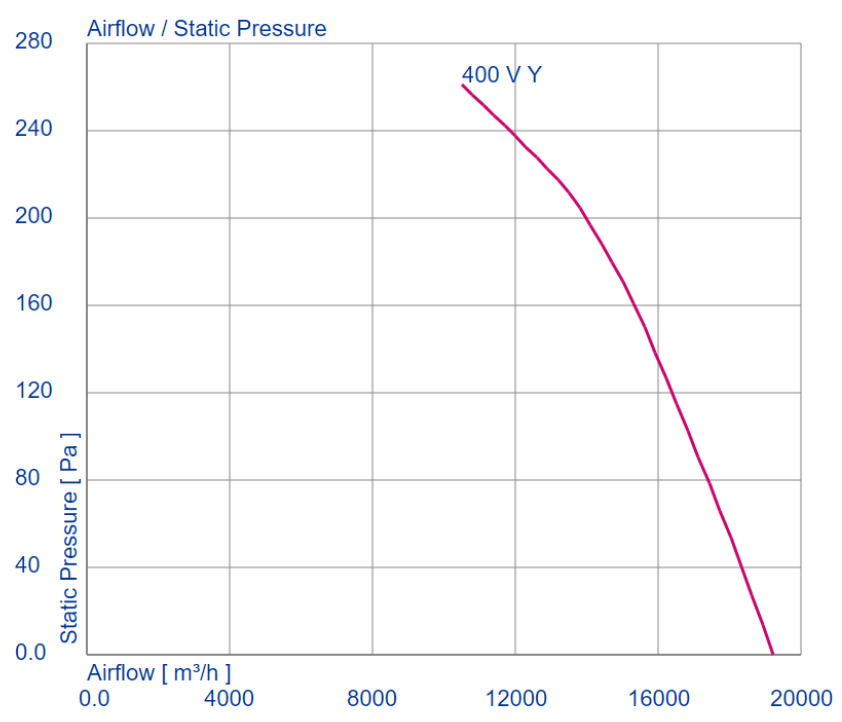

| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 19200 |
| Max. pressure psf [Pa] | 260 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 10500 |
 | |
| Performance data | Effizienzgrad: Nist = 45.4 |
