MatchcodeFG065-SDK.CI.V5P2Item number ZV-188836 |  |
|---|---|
| Product group | Axial fan |
| Model | Standard |
| Design | Refrigeration technology |
| Name | |
| Blade series | FG |
| Fan series match code | FG065-__K.C_.V5P2 |
| Blade diameter [cm] | 65 |
| Motor technology | AC |
| Rated voltage UN [V] UN [V] | 3~400 |
| Rated frequency fN [Hz] | 50 |
| Input power P1 [kW] | 0,6 |
| Rated current IN [A] | 0,6/0,38 |
| Rated speed nN [min-1] | 1.25/0.7 |
| Current rating increase Δ I [%] | 890/660 |
| Controlling starting current IA [A] | |
| Operating capacitor C400V [µF] | |
| Thermal class | THCL 155 |
| Minimum permissible flow medium temperature [°C] | -40 |
| Maximum permissible flow medium temperature [°C] | 70 |
| Electrical connection | Junction box |
| Sound pressure level LpA or LwA [dB(A)] | 63-72 |
| Number of wings | 5 |
| Rotor | Aluminium, non-lacquered |
| Wall ring plate | |
| Conformity | ErP 2015 |
| Weight [kg] | 15.8 |
| Airflow direction | V |
| Model | K |

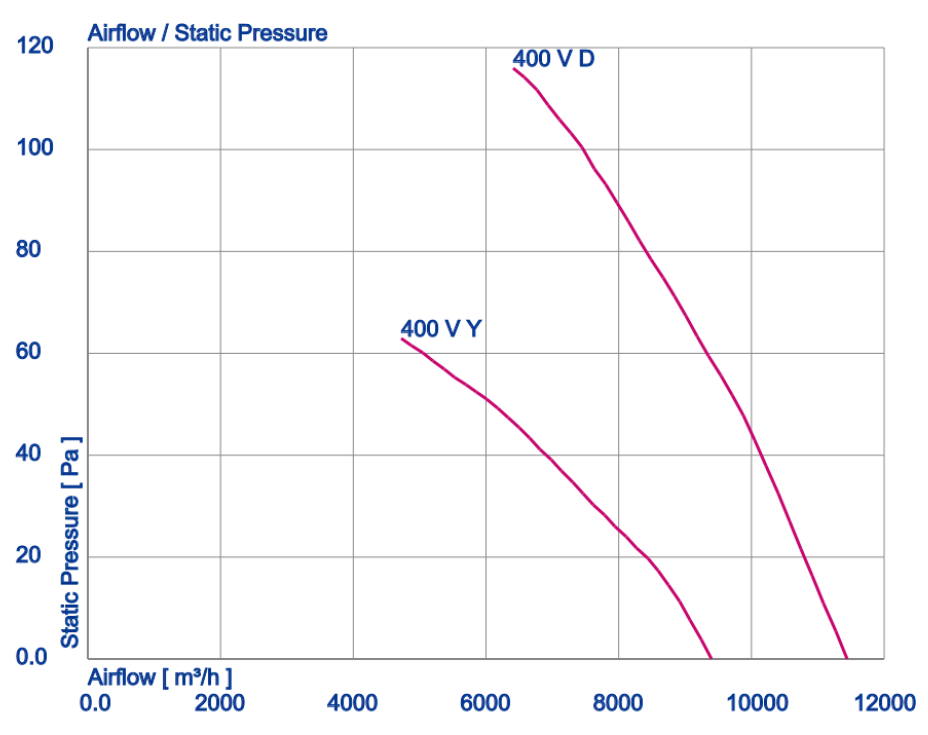

| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 11400 |
| Max. pressure psf [Pa] | 115 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 6500 |
 | |
| Performance data | Effizienzgrad: Nist = 45.0 |
