ZIEHL ABEGG - FN065-SDW.6F.A7P2 / ZV-195943

Matchcode FN065-SDW.6F.A7P2 Item number ZV-195943
Product group	Axial fan
Model	Standard
Design
Name
Blade series	FN
Fan series match code	FN065-__W.6_.A7P2
Blade diameter [cm]	65
Motor technology	AC
Rated voltage U_N [V] UN [V]	3~400 / 3~460
Rated frequency fN [Hz]	50/60
Input power P1 [kW]	1,15
Rated current IN [A]	0,7/0,54 / 1,1/0,62 1,15/0,76
Rated speed nN [min-1]	1.4/0.92 / 1.9/1.15 / 1.8/1.2
Current rating increase Δ I [%]	930/760 / 1030/680 / 1080/780
Controlling starting current IA [A]
Operating capacitor C400V [µF]
Thermal class	THCL 155
Minimum permissible flow medium temperature [°C]	-40
Maximum permissible flow medium temperature [°C]	70
Electrical connection	Junction box
Sound pressure level LpA or LwA [dB(A)]	73-85
Number of wings	7
Rotor	Aluminium, non-lacquered
Wall ring plate
Conformity	ErP 2015
Weight [kg]	21.5
Airflow direction	A
Model	W
Max. volume flow qv, (where psf = 0 Pa) [m³/h]	11200
Max. pressure psf [Pa]	150
Max. volume flow qv [m³/h] (at max. psf [Pa])	4500

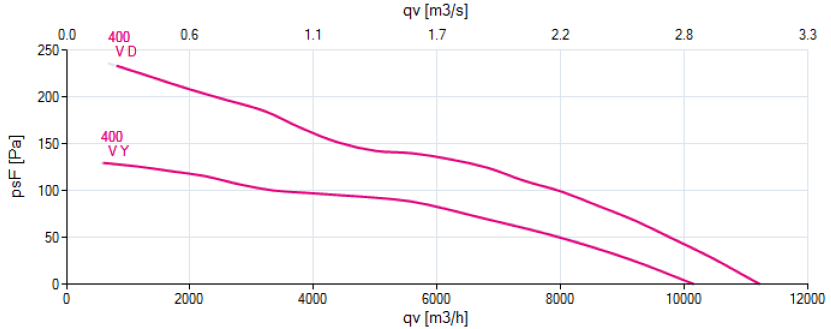

Performance data

Effizienzgrad: Nist = 45.5
