MatchcodeFN080-6ET.6N.A5P7Item number ZV-169974 |  |
|---|---|
| Product group | Axial fan |
| Model | Standard |
| Design | |
| Name | |
| Blade series | FN |
| Fan series match code | FN080-__T.6N.A5P7 |
| Blade diameter [cm] | 80 |
| Motor technology | AC |
| Rated voltage UN [V] UN [V] | 1~230 |
| Rated frequency fN [Hz] | 50/60 |
| Input power P1 [kW] | 1,75 |
| Rated current IN [A] | 1,3 / 1,75 |
| Rated speed nN [min-1] | 6.2 / 8.0 |
| Current rating increase Δ I [%] | 870 / 910 |
| Controlling starting current IA [A] | |
| Operating capacitor C400V [µF] | |
| Thermal class | THCL 155 |
| Minimum permissible flow medium temperature [°C] | -25 |
| Maximum permissible flow medium temperature [°C] | 70 |
| Electrical connection | Junction box |
| Sound pressure level LpA or LwA [dB(A)] | 80-87 |
| Number of wings | 5 |
| Rotor | Aluminium, 1-coat lacquer, black |
| Wall ring plate | |
| Conformity | ErP 2015 |
| Weight [kg] | 30.9 |
| Airflow direction | A |
| Model | T |
| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 19500 |
| Max. pressure psf [Pa] | 155 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 9000 |
 | |

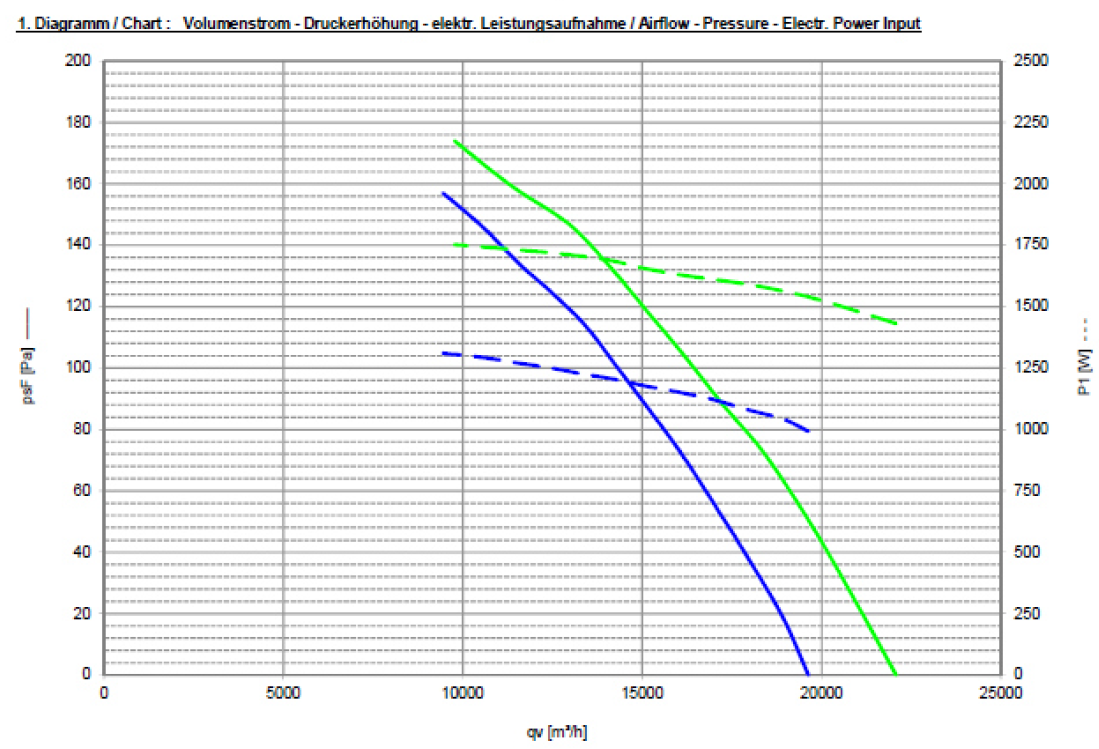

| Performance data | Effizienzgrad: Nist = 35,5 |
